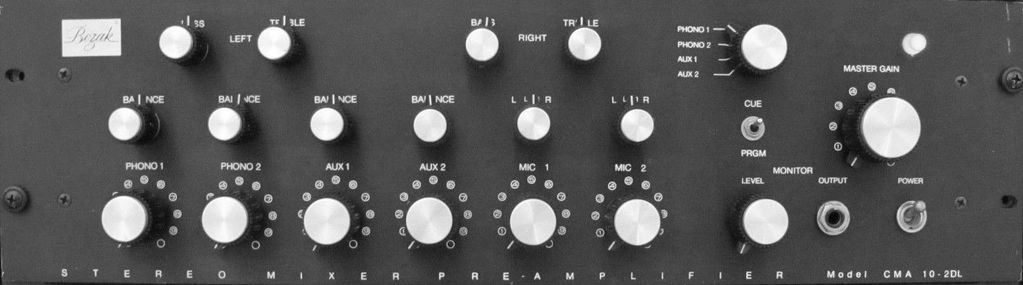

Top of the line model (prototype shown with all options) BB-6-3A fully loaded with 4 Phono, 6 Line, and 2 Microphone inputs. Each channel will have a selector switch to choose 1 of 2 inputs. All 6 channels will be Cue selectable with front and rear panel outputs. Master and Booth outputs will be XLR optional XLR Balanced, RCA, and 1/4 inch available. Tape Loop function will include 2 stereo sets of send for added durability. The power supply will be 115/230 volt outside selectable and 100 volt internal jumpers making it usable from several line voltages sources. All level controls will be Alps classic RK40 black beauty potentiometers rotated by external old school styled knobs. Phono inputs are easily changed to Line level with 4 supplied jumper cards making it up to 10 Line level inputs. The unit Balance control can be taken out of the signal chain with internal jumpers provide. There will be aanother model the BB-6-3B which will have similar options and channel 6 being designated as a microphone.
The standard model (prototype shown) BB-6-3A is equipped with the 115/230 volt outside selectable voltage switch making it usable from different voltages sources. Channels 1-4 will have a selector switch to chose 1 of 2 input Line level sources. Line level source jumper cards provided for channels 1-4 can easily be removed and Phono preamp cards installed. Channels 5 and 6 will be Line level inputs with the Microphone source as an option. All 6 channels will be Cue selectable with front panel output for headphone monitoring. The standard model will have Master and Booth level controls with rear panel matched RCA output jacks. Tape Loop function will include 2 stereo sets of send for added durability. All level controls will be Alps RK27 blue soft touch including the Master Balance. The Balance control can be removed from the signal chain with internal jumpers provide. All knobs will have the classic old school appearance.
Classic universal knobs will be used on all models for that OLD SCHOOL appearance
The level gain controls will be all new ALPS potentiometers. The mixers will come standard with RK27 soft touch blue (left) with the optional RK40 black beauty (right) as the purchasers option
